خطا در energy plus simulation

parniyan goli parniyan goli
1,143 بازدید 2 پاسخ

first.zipوقت بخیر، حین اجرای energy plus simulation خطاهای زیر داده میشه:

1. Failed to find in library.

1. Solution exception:'ascii' codec can't encode character 'u641' in position 202: ordinal not in range(128)

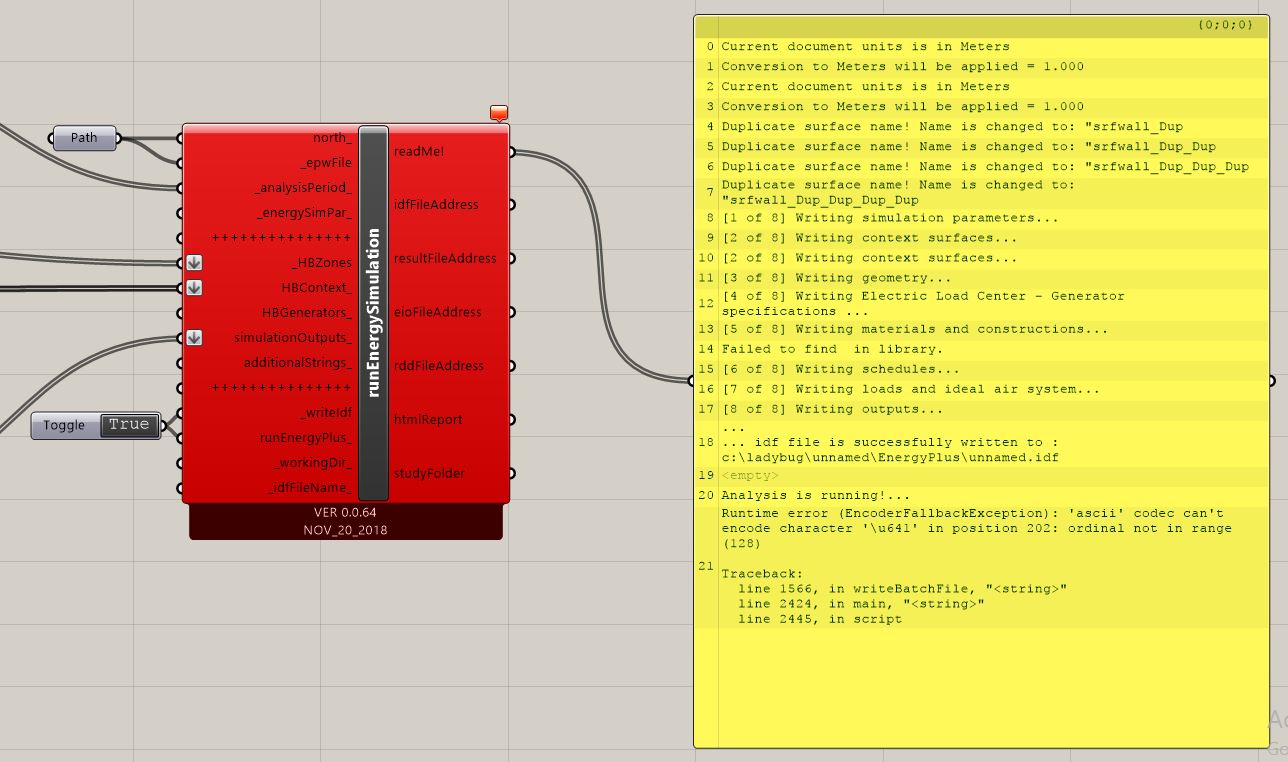

با اتصال پنل به output این کامپوننت خطا به این شکل هست:


{0;0;0}

0. Current document units is in Meters

1. Conversion to Meters will be applied = 1.000

2. Current document units is in Meters

3. Conversion to Meters will be applied = 1.000

4. Duplicate surface name! Name is changed to: "srfwall_Dup

5. Duplicate surface name! Name is changed to: "srfwall_Dup_Dup

6. Duplicate surface name! Name is changed to: "srfwall_Dup_Dup_Dup

7. Duplicate surface name! Name is changed to: "srfwall_Dup_Dup_Dup_Dup

8. [1 of 8] Writing simulation parameters...

9. [2 of 8] Writing context surfaces...

10. [2 of 8] Writing context surfaces...

11. [3 of 8] Writing geometry...

12. [4 of 8] Writing Electric Load Center - Generator specifications ...

13. [5 of 8] Writing materials and constructions...

14. Failed to find in library.

15. [6 of 8] Writing schedules...

16. [7 of 8] Writing loads and ideal air system...

17. [8 of 8] Writing outputs...

18. ...

... idf file is successfully written to : c:ladybugunnamedEnergyPlusunnamed.idf

19.

20. Analysis is running!...

21. Runtime error (EncoderFallbackException): 'ascii' codec can't encode character 'u641' in position 202: ordinal not in range(128)


Traceback:

line 1566, in writeBatchFile, ""

line 2424, in main, ""

line 2445, in script


نمی دونم چه طور و از کجا این خطا ناشی میشه.

مخاطبین: امیر تبادکانی امیر تبادکانی
دسته‌بندی: هانی بی انرژی
برای ارسال پاسخ، ابتدا وارد شوید.

2 پاسخ

امیر تبادکانی امیر تبادکانی

فایل اب و هوایی که انتخاب کردید در مسیرش یا یک فاصله (space) وجود داره یا حروفی غیر از انگلیسی .. محل قرار گیری فایل اب وهوایی رو عوض کنید

parniyan goli parniyan goli

بسیار متشکرم از پاسختون
